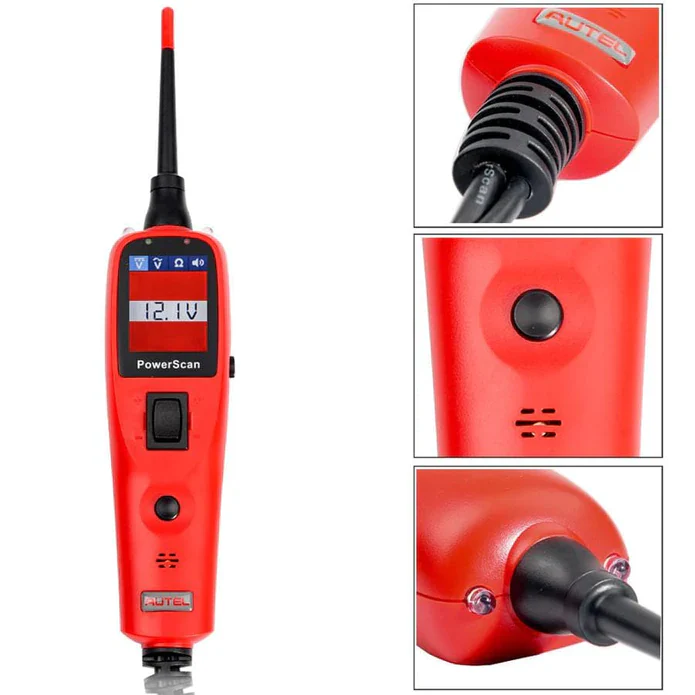

Autel PowerScan PS100 - RED ver.

Autel PowerScan PS100 Circuit Tester

The Autel PowerScan PS100 is the most revolutionary circuit tester to date. Featuring an AVOmeter, test light, built-in flashlight, short circuit indicator, relay/component tester, continuity tester, and bad ground indicator, it is truly the ultimate in power and affordability—allowing users to test circuitry in one step. It is an absolute must for every technician seeking a fast and accurate solution for electrical system diagnostics.

Autel PowerScan PS100 Features

• Performs all types of electrical system services: power injection, measurement, ground testing, polarity checks, continuity testing, and component activation
• Easy-to-read AVOmeter enables reading voltage, current, and resistance at your fingertips
• Flipping the power switch instantly provides a hot/ground lead for powering up electrical components (e.g., cooling fans, relays)
• Simultaneously uses hot and ground leads to activate components directly in your hand
• Instantly identifies positive, negative, and open circuits
• Instantly tests for bad ground contacts, allowing fast tracking and location of shorts without wasting fuses
• Instantly checks continuity of switches, relays, and diodes
• Equipped with circuit breaker protection
• Built-in flashlight enables work in dark environments
• Audio tone indicator supports no-look menu scrolling once users are familiar with menu tone assignments
• 20ft (extendable) test cable provides excellent accessibility for testing along the vehicle
• Extremely easy to use and highly reliable

Specification

Display	TFT color display (160 x 128 dpi)
Operating Temperature	0 to 60°C (32 to 140°F)
External Power	12.0 or 24.0 V power provided via vehicle battery
Length\Width\Height	126mm(4.96”)\46.5mm(1.83”)\35mm(1.38”)
NW	0.105kg (0.23lb),GW: 0.726 kg(1.6lb)

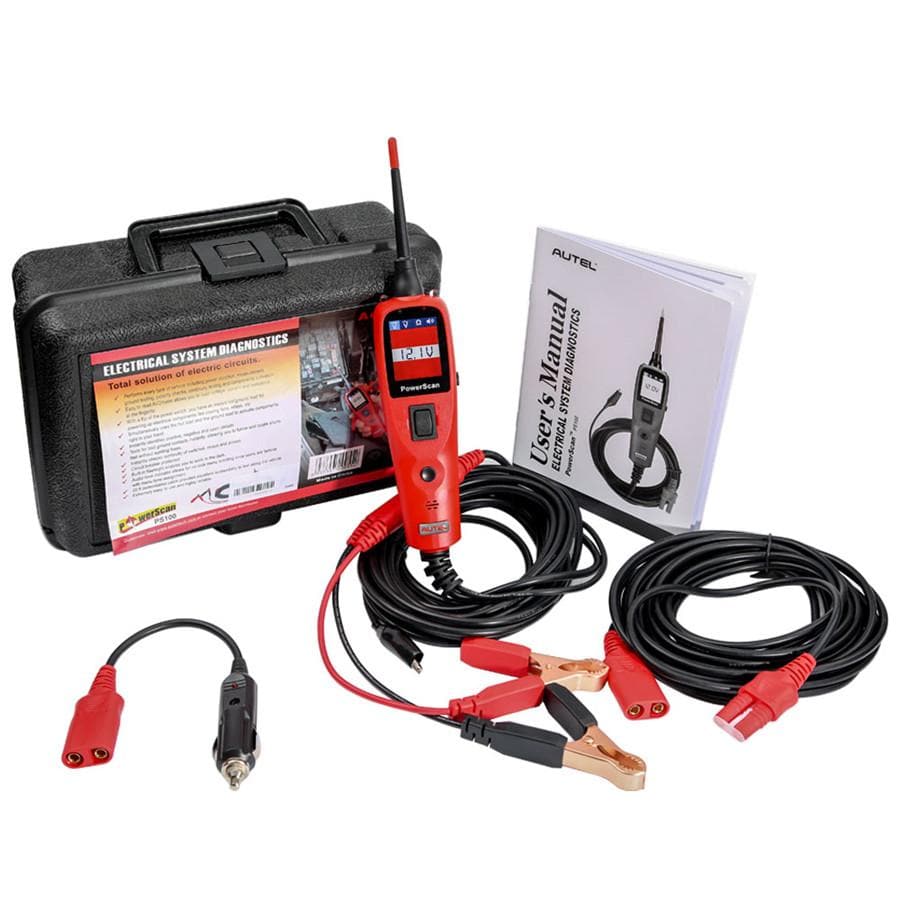

Packing List

• 1 × PowerScan PS100
• 1 × Rugged blow molded case
• 1 × 20ft. extension cable
• 1 × Probe tip
• 1 × Battery hookup clips
• 1 × Cigarette lighter adapter
• 1 × User's Manual
