Autel MaxiBAS BT508

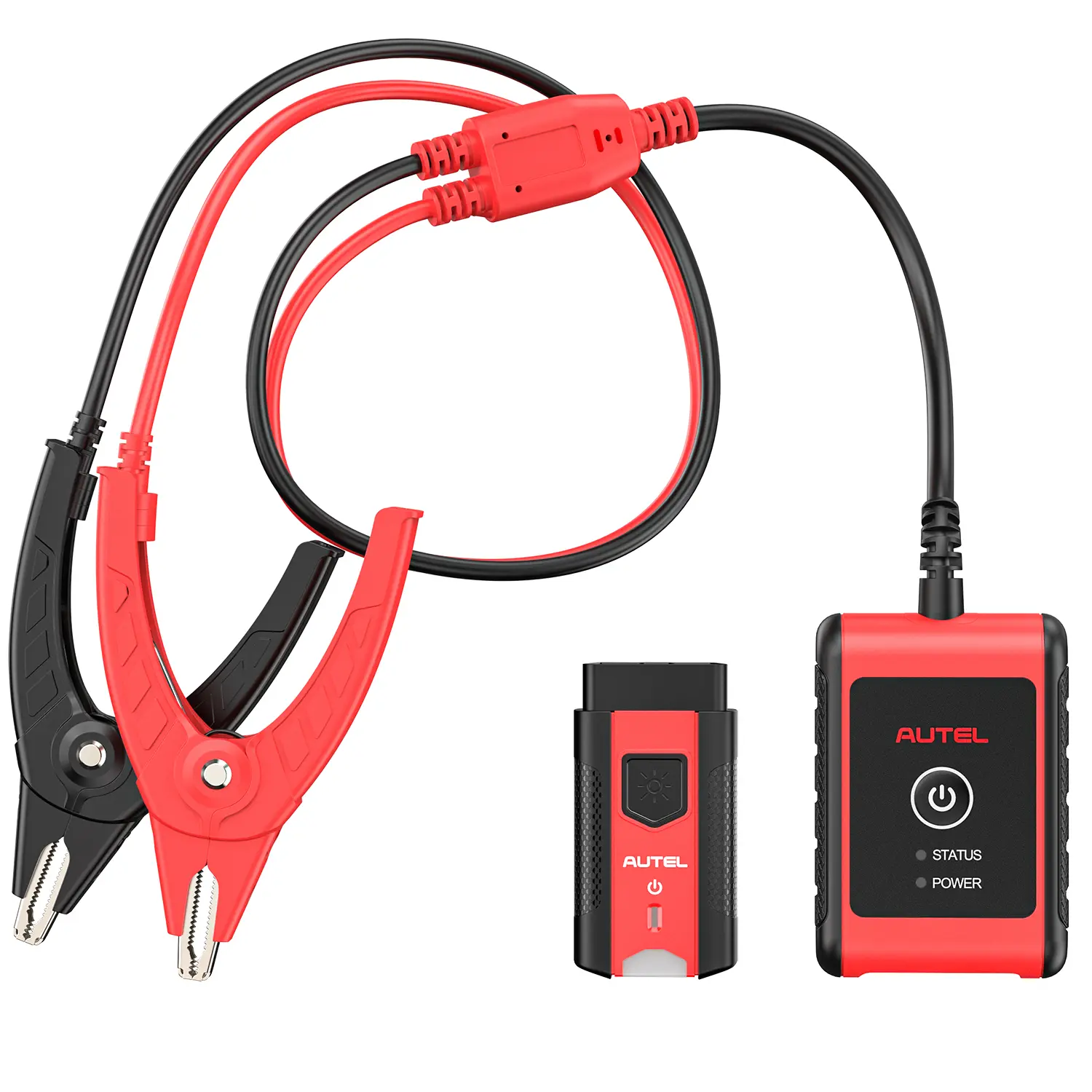

Autel MaxiBAS BT508 Battery Test Tool
The BT508 is a powerful yet lightweight battery and electrical system tester that uses Adaptive Conductance, an advanced battery analysis method, to produce a more accurate examination of the battery’s cold cranking ability and reserve capacity, vital to determining a battery’s true health. Download the free and easy-to-use mobile app, available for iOS and Android devices, to use with the BT508 to perform testing and display test results. The BT508 package includes a wireless Bluetooth vehicle communication interface enabling battery and electrical component registration.
Autel MaxiBAS BT508 Features
- Supports in-vehicle and out-of-vehicle testing of passenger vehicle batteries
- Tests 12-volt batteries: 100 - 2000 CCA
- Tests 12-volt cranking/charging systems
- Tests Flooded, AGM, AGM Spiral, EFB and GEL batteries
- Compatible with CCA, CA, SAE, EN, IEC, DIN, JIS and MCA
- One-touch battery registration
- Illustration instruction guides for battery positioning and testing
- Reads and erases codes of all available systems
Specifications
| Connectivity: | USB 2.0; Type C; Bluetooth V3.0 BR/EDR+ V4.2 LE Dual-Mode |
| Input Voltage: | 5 V DC |
| Working Current: | 150 mA at 12 V DC |
| CCA Range: | 100 to 2000 A |
| Voltage Range: | 6 to 36 V |
| Working Temperature: | -10° to 50° C (14° to 122° F) |
| Storage Temperature: | -20° to 60° C (-4° to 140° F) |
| Dimension (L x W x H): | 107 mm (4.21“) x 75 mm (2.95”) x 26 mm (1.02”) (clamp cable not included) |
| Weight: | 320 g (0.7 lb.) |
Packing List
- 1x BT508 Main Unit
- 1x Battery Clamp Cable (Black)
- 1x Battery Clamp Cable (Red)
- 1x VCI200
- 1x User Quick Guide
