Autel MaxiSys Ultra

Autel Maxisys Ultra with Database, Topology Module Mapping and Split Screen Display

The MaxiSys Ultra is Autel’s most ambitious diagnostics tablet designed to maximize technician intelligence. It features a 12.7-inch touchscreen tablet with Android 7.0 OS powered by an Octa-core processor (2.3GHz Quad + 1.7GHz Quad), substantial 256GB built-in memory, all powering the new split-screen multi-application navigation to provide diagnostic guidance and test components to confirm repairs. Combined with the dynamic topology module mapping, enhanced AutoSCAN features, the Ultra offers the technicians advanced diagnostics. The new MaxiFlash VCMI functions as a 4-channel oscilloscope, waveform generator, multimeter, and CAN BUS tester. The convenient docking station featured ensures you always have the power to scan.

Autel Maxisys Ultra Features

• 1-Year free software update & warranty
• Autel updates provide latest OE level coverage for more than 80 US domestic, Asian and European vehicles, including supercar
• Exceptional OE-Level functionality from comprehensive OBDII diagnostics & services to advanced ECU coding and programming
• Ultra features Topology Mapping 2.0, which is able to display a CAN BUS tree with color coded modules in one page, which can present full system diagnostic results visually and make you work just to the point precisely
• Different from traditional scan tools, the automotive diagnostic scan tool Autel Ultra is equipped with an advanced 5-in-1 VCMI combining VCI, oscilloscope, waveform generator, multimeter, and OBD2 CAN BUS Check, it can perform super precise and most overall diagnostic and services on 99% vehicles on the market
• Automatic system and software updates with real-time push message notifications via internet
• Interactive Data Logging sessions enable direct contact with Autel Support for first-hand troubleshooting of diagnostic bugs and errors
• One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organized
• Cloud-based Data Manager saves customer and vehicle records, scanner data and technician notes

Specifications

Operating System	Android 7.0
Processor	Samsung Exynos8895V octa-core Processor (2.3GHz Quad-core Mongoose + 1.7GHz Quad-core A53)
Memory	4GB RAM 256GB On-board Memory
Display	12.7 inch TFT-LCD with 2732 x 2048 resolution capacitive touch screen
Connectivity	WiFix2 (802.11 a/b/g/n/ac 2x2 MIMO),BT v.2.1 + EDR,GPS USB 2.0 (Two USB HOST Type A, one USB mini device),HDMI 2.0,SD Card (Support up to 256GB)
Camera	Rear: 16 Megapixel, Autofocus with Flashlight Front: 5 Megapixel
Sensors	Gravity Accelerometer, Ambient Light Sensor (ALS)
Audio Input/Output	Microphone,Dual Speakers,3-Band 3.5 mm stereo/standard headset jack
Power and Battery	18000mAh 3.8 V lithium-polymer battery Charging via 12 V AC/DC power supply with the temperature between 0°C and 45°C
Input Voltage	12V/3A Adapter
Operating Temp.:	0 to 50°C (32 to 122°F)
Storage Temp	-20 to 60°C (-4 to 140°F)
Dimensions (W x H x D)	366.5 mm (14.43") x 280.9 mm (11.06") x 34 mm (1.34")
Weight	2.18kg (4.81 lb.)
Protocols	DoIP, PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire Can (GMLAN), ISO-11898-2, ISO-11898-3, SAE-J2819 (TP20), TP16, ISO-9141, ISO-14230, SAE-J2610 (Chrysler SCI), UART Echo Byte, SAE-J2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART with Clock , BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708, SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2)

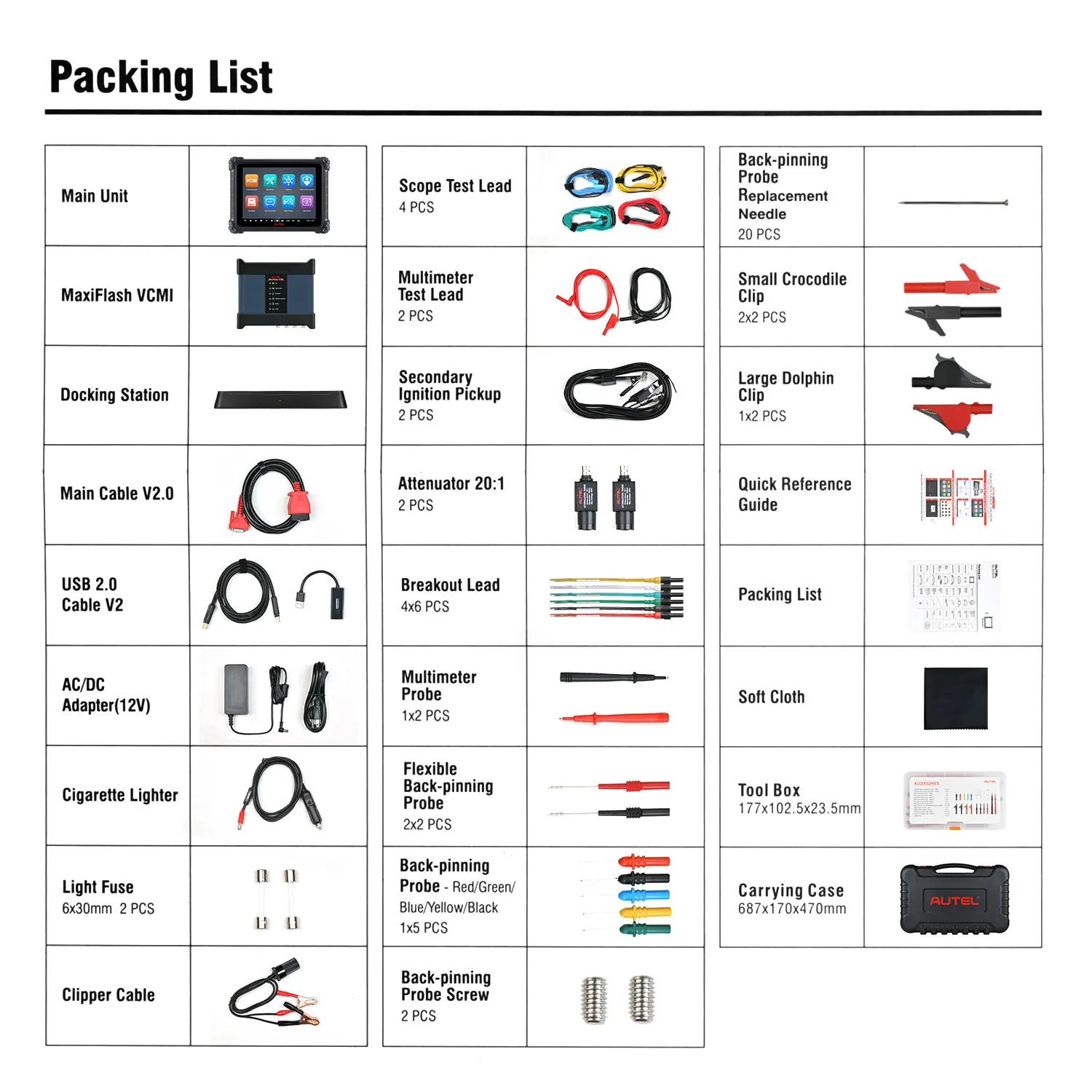

Packing List

• Maxisys Ultra Main Unit
• MaxiFlash VCMI
• Docking Station
• Main Cable V2.0
• USB 2.0 Cable V2
• AC/DC Adapter(12V)
• Cigarette Lighter
• 2 PCS*Light Fuse (6x30mm )
• Clipper Cable
• 4 PCS*Scope Test Lead
• 2 PCS*Multimeter Test Lead
• 2 PCS*Secondary Ignition Pickup
• 2 PCS*Attenuator 20:1
• 4x6 PCS*Breakout Lead
• 1x2 PCS*Multimeter Probe
• 2x2 PCS*Flexible Back-pinning Probe
• 1x5 PCS*Back-pinning Probe - Red/Green/Blue/Yellow/Black
• 2 PCS*Back-pinning Probe Screw
• 20 PCS*Back-pinning Probe Replacement Needle
• 2x2 PCS*Small Crocodile Clip
• 1x2 PCS*Large Dolphin Clip
• Quick Reference Guide
• Packing List
• Soft Cloth
• Tool Box (177 x 102.5 x 23.5 mm)
• Carrying Case (687 x 170 x 470 mm)

Product Guides & Downloads

• Autel Ultra User Manual (PDF)
• Ultra One Year Software Update
