Autel MaxiSys MS906 Pro-TS

Autel MaxiSYS MS906 Pro-TS with Bluetooth OBDII Bi-Directional Diagnostic and TPMS Service Functions

MaxiSYS MS906Pro-TS is an advanced diagnostic tablet compatible with U.S., Asian and European vehicles, 1996 and newer. This 8-inch wireless Android-based touchscreen tablet performs comprehensive TPMS servicing including 1-Sensor programming to its extensive vehicle diagnostics capability including an all systems scan with ADAS identification, the ability to read/erase codes, view freeze frame and live data, bi-directional control including active testing, coding and adaptations. Includes customizable Pre/Post scans, extensive service menu with 25 of the most common maintenance tasks. FCA Access via AutoAuth account, starting and charging system analysis with MaxiBAS BT506 Bluetooth tester and terminal cables purchase, ADAS Calibrations capable (frame system and software upgrade required).

Autel MaxiSYS MS906 Pro-TS Features

Hardware

• 8-inch, 1920 x 1200 high-resolution touchscreen tablet, Octa-core processor with 128 GB storage.
• Long-lasting 11,600 mAh rechargeable battery, 16 MP front camera and 16 MP rear camera.
• MaxiVCI V200 wireless Bluetooth vehicle communication interface supporting the latest communication protocols

Software

• 1-Year free software update & warranty
• Comprehensive diagnostics on 1996 and newer U.S., Asian and European vehicles
• AutoScan: Scan all available systems, including ADAS identification
• Read/Erase Codes, View Freeze Frame and Live Data
• Integrated TPMS antenna module for performing comprehensive TPMS service
• Perform Active Tests (bi-directional controls), Coding and Adaptations
• AutoVIN/Scan VIN for rapid vehicle identification
• Performs ADAS Calibrations with software upgrade and frame system purchase
• Comprehensive TPMS service including the ability to activate and relearn all known sensors, and program the Autel 1-Sensor to replace 99% of TPMS sensors on the road today.

New Software Features

• Battery Analysis Capability
• Cloud-based Reports and Data Management
• With additional purchase of the MaxiBAS BT506 battery and electrical system tester.
• With purchase of ADAS calibration frame system and software



Specifications

Hardware
CPU	Samsung Exynos 8 Core(4*M2 2.3G + 4*A53 1.7G)
Memory	4/128GB
Android	Android 7.0/10.0
LCD	8” 1920*1200
Battery	11 600 mAh
Camera	Front: 5 Megapixel Rear: 16 Megapixel
Diagnostic Functions
Special Function	36+
Guide Function	Support Volkswagen,Audi
Coding and Adaptation	BMW F and E chassis coding  Porsche Coding Ford offline adaptation
Expanded Function
TPMS	Included
Battery and Electrical System Testing	Support
Cloud Services	Support
Remote Expert	Support
Cloud Report Storage	Support



Packing List

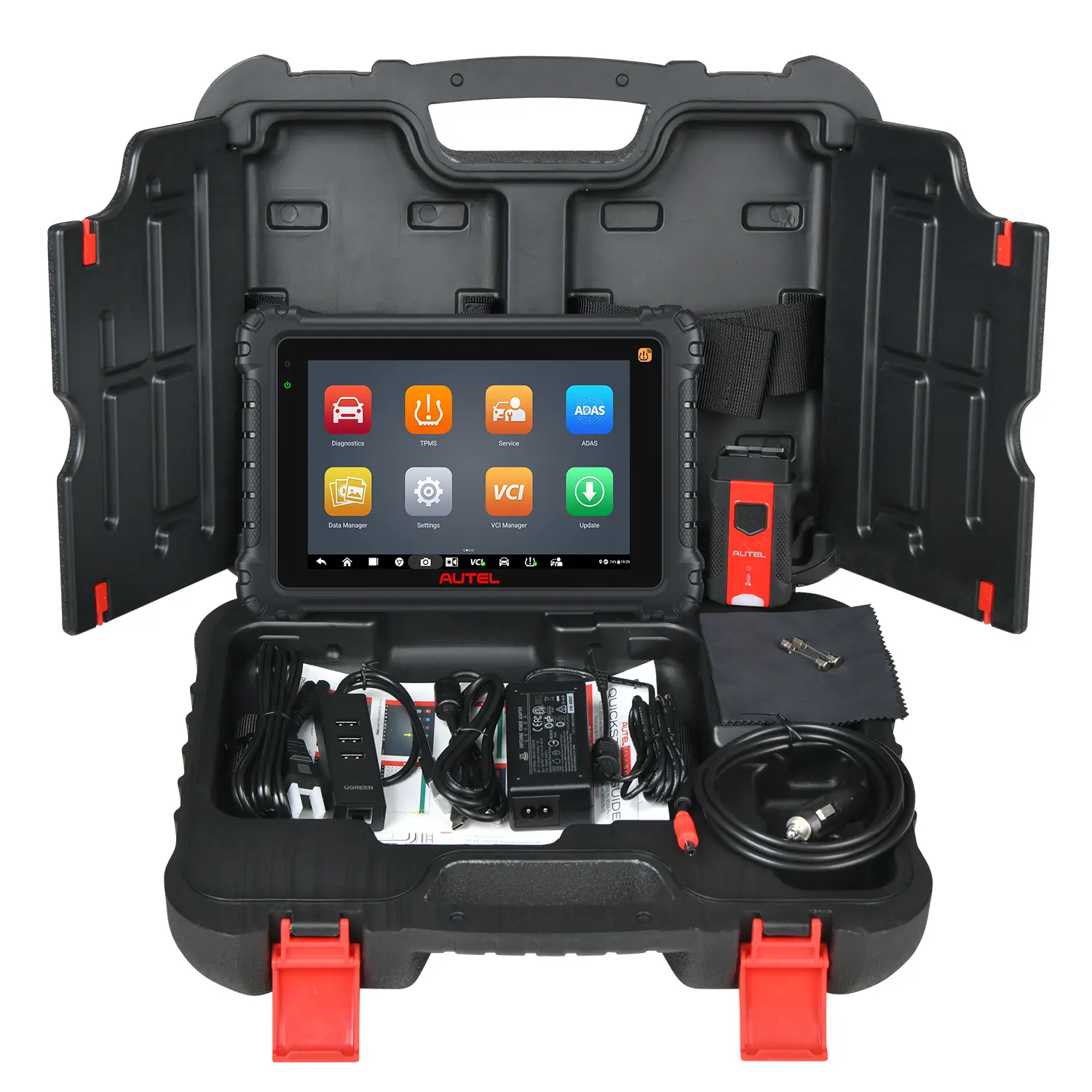

• 1 x Maxisys MS906 Pro-TS Tablet
• 1 x MaxiVCI V200
• 1 x AC/DC Adapter(12V)
• 1 x Type C USB Cable
• 1 x Cigratte Lighter Adapter
• 1 x Spare Fuse
• 1 x USB To Ethernet Adapter
• 1 x Quick Reference Guide
• 1 x Soft Cloth
• 1 x Packing List
• 1 x Carrying Case
