Autel MaxiBAS BT608
Autel MaxiBAS BT608 Automotive Battery Tester
The BT608 is a touchscreen Battery & Electrical System analyzer that applies Adaptive Conductance technology for accurate assessment of battery health. It offers advanced diagnostics for 6V/12V batteries, 12V/24V cranking/charging systems, and integrates comprehensive vehicle identification and report generation capabilities.
Autel MaxiBAS BT608 Features
Hardware Specifications
- 5.5-inch touchscreen with 720×1280 resolution
- 1.5GHz quad-core Cortex-A35 processor, 2GB RAM + 32GB storage
- 3000mAh rechargeable battery (6-hour runtime)
- 8MP rear camera for VIN/barcode scanning
- Connectivity: Wi-Fi 6 (802.11ax), Bluetooth 5.0+EDR, USB-C
- Built-in thermal printer for instant report generation
Battery Testing Capabilities
- Supports 6V/12V batteries (100-3000 CCA) and 12V/24V cranking/charging systems
- Adaptive Conductance technology for 95% accurate capacity measurement
- Analyzes Flooded, AGM, AGM Spiral, EFB, and GEL battery types
- Measures State of Charge (SoC) and State of Health (SoH) with color-coded alerts
- Compatible with CCA, CA, SAE, EN, IEC, DIN, JIS, and MCA battery standards
Vehicle Integration & Diagnostics
- AutoVIN/ScanVIN for automatic vehicle identification and battery specs lookup
- One-touch battery registration for 53+ vehicle brands
- Step-by-step illustration guides for battery positioning and testing
- Full system diagnostics with code reading/clearing for all available ECUs
- Supports electrical system reset (e.g., window/sunroof initialization)
Data Management & Connectivity
- Cloud-based report storage and sharing via Wi-Fi
- Customizable PDF reports with test results and vehicle details
- Software updates via Wi-Fi with real-time notifications
- Optional amp clamp and multimeter for advanced electrical system analysis
Specifications
| Operating System: | Android 9.0 |
| Screen Display: | 5.5'' LCD touch screen with 720*1280 resolution |
| Storage: | 32 GB |
| Connectivity: | Wi-Fi (802.11 a/b/g/n/ac),USB 2.0, Type C, BT5.0+EDR |
| Camera: | 8 Megapixel |
| Input Voltage: | 5 V DC |
| Working Current: | 450 mA at 7.7 V DC |
| Internal Battery: | 7.7 V, 3000 mAh |
| CCA Range: | 100 to 3000 A |
| Voltage Range: | 1.5 to 36 V |
| Working Temperature: | 0° to 50° C (32° to 122° F ) |
| Storage Temperature: | -10° to 60° C (14° to 140° F ) |
| Dimension (L x W x H): | -204 mm x 90 mm x 32 mm (8.03” x 3.54” x 1.25”) |
| Weight: |
510 g (1.12 lb.) |

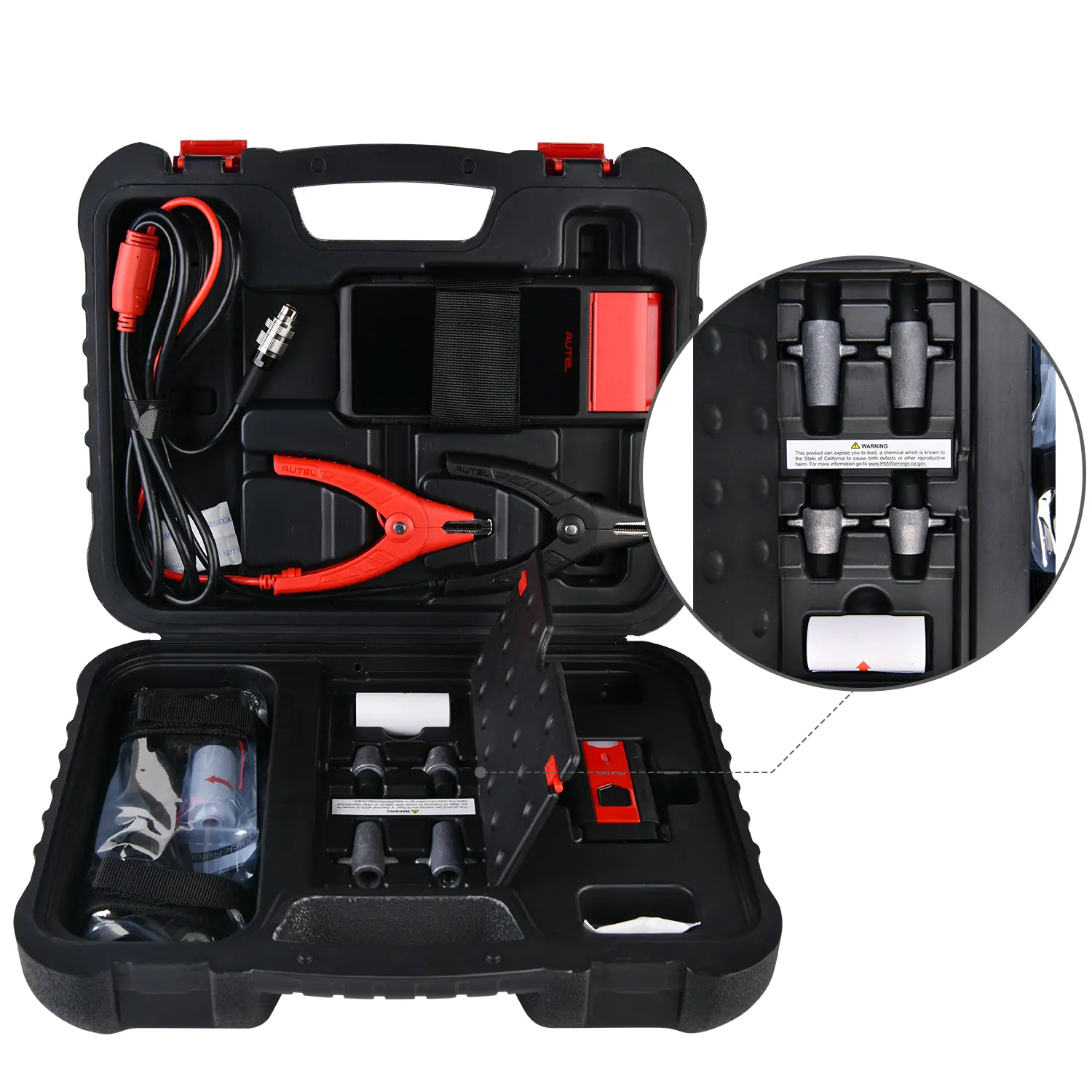

Packing List
- 1x BT608 Main Unit
- 1x MaxiCVI MV200 Series
- 1x Battery Clamp Cable
- 2x Paper Roll
- 2x Battery Side Post Terminal TYPE T
- 2x Battery Side Post Terminal TYPE S
- 1x Power Adapter
- 1x USB Cable
