Autel MaxiDiag MD808 Pro

Autel MaxiDIAG MD808 Pro OBD2 All System Diagnostic Code Scanner

The MaxiDIAG MD808 Pro is built to take your diagnostic experience to a whole new level. Loaded with oil service reset, battery registration and reset, parking brake pad relearn after replacement, steering angle sensor relearn, and diesel particulate filter regeneration functions, MD808 Pro can access ALL available modules for the best diagnosis operations. With all that enclosed in a 4-inch hand-held device, there is no better multifunctional scan tool on the market.

Autel MaxiDIAG MD808 Pro Features

• Supports Read/Clear Codes and Live Data functions for ALL systems
• Reads and clears trouble codes, controls, and tests BMS/Oil Reset/SRS/EPB/DPF systems
• Supports oil service reset
• Supports battery registration and reset
• Diesel particulate filter (DPF) service including forced regeneration
• Resets steering angle sensor (SAS) functionality
• Relearns parking brake pad after replacement
• Resets service mileage and service intervals
• Turns off ECU brake warning light
• Performs O2 monitor, onboard monitor, I/M readiness, and component testing
• Prints diagnostic reports via PC
• Global OBD II coverage for U.S. domestic, Asian, and European makes and models
• All OBD II protocols, all 10 test modes, and enhanced OBD II mode 6 support

Specifications

Processor	ARM® Thumb® Processor running at up to 400 MHz
Memory	32MB, 166 MHz
Display	4.0 inch LCD with 800x480 resolution
Connectivity	Mini USB: 2.0 Micro SD Card (16GB)
Power Consumption	1.7 W
Operating Temperature	-10°C to 60°C (14°F to 140°F)
Storage Temperature	-20°C to 70°C (-4°F to 158°F)
Operating Humidity	5% - 95% non-condensing
Housing	Strong plastic housing with protective rubber boot
Dimensions	202 mm x 92 mm x 35 mm (8.35” x 3.62” x 1.4”)
Weight	313 g (0.69 lb.)

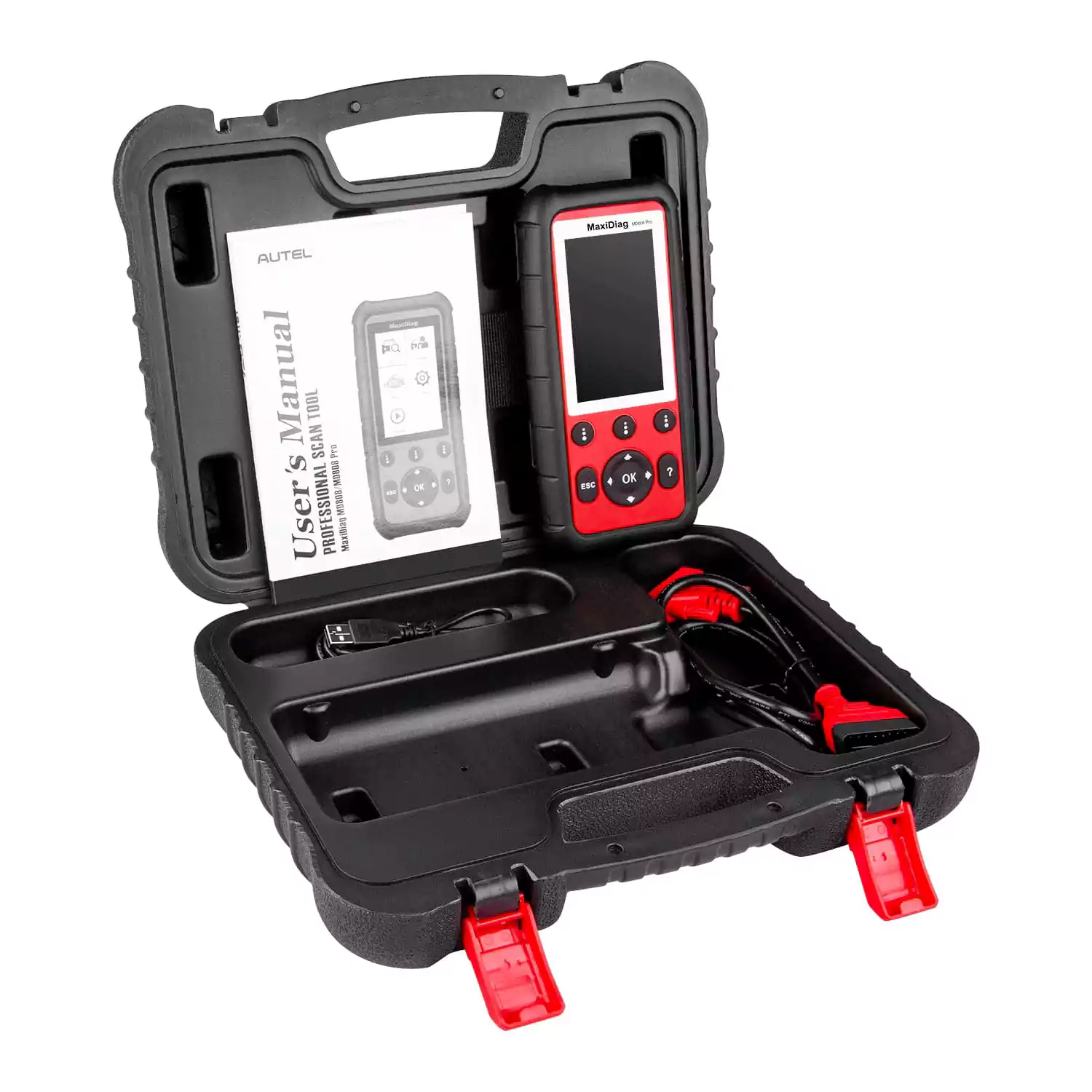

Packing List

• 1x MD808 Pro Main Unit
• 1x User Manual
• 1x OBD II Cable
• 1x USB Cable
• 1x Micro SD Card
• 1x Quick Guide
• 1x Carry Case
