Autel MaxiCOM MK906S PRO2-TS

Autel MaxiCOM MK906S Pro2-TS with ADVANCED DIAGNOSTICS SYSTEM & TPMS INTEGRATION

Utilizing the powerful Octa-core processor and the Android 10 operating system, the MaxiCOM MK906 Pro2-TS / MK906S Pro2-TS is an efficient and powerful diagnostics tool featured with the best possible coverage of OE-level diagnostics and TPMS integration. This wireless diagnostic scanner tool provides comprehensive vehicle diagnostics and analysis along with universal TPMS solutions.

Autel MaxiCOM MK906S Pro2-TS Features

• 1-Year Free Software Updates & Warranty
• Extraordinarily powerful Octa-core processor
• 8-inch 1920x1200 LED-backlit glossy multi-touch capacitive display
• Built-in 16-megapixel cameras with autofocus
• Built-in 11600 mAh rechargeable lithium-polymer battery
• Android 10 OS for fast boot-up and multitasking
• Featuring embedded TPMS antenna module (315/433 MHz; 2.4 GHz BLE) and full TPMS functionality
• Exceptional OE-level all systems diagnostics & services for extensive vehicle coverage
• Enhanced features including battery test (tool purchased separately), and more
• Autel cloud services for instant remote tech support and convenient data management

Specifications

Operating System:	Android 10.0
Processor:	Qualcomm 660 Octa-core Processor (2.2GHz Quad-core A73 + 1.8GHz Quad-core A53)
Memory:	4/128GB
Display:	8.0" LED capacitive touch screen with 1920x1200 resolution
Connectivity:	• Wi-Fi (802.11 b/g/n)USB: 2.0, Mini USB 2.0 Wireless BT V2.1+EDR Class1, HDMI 1.4a SD Card (support up to 32 GB)
Camera (rear):	Front: 16 Megapixel Rear: 16 Megapixel
Sensors;	Gravity Accelerometer, Ambient Light Sensor (ALS)
Audio Input/Output:	• Microphone • Single Speaker • 3-Band 3.5 mm stereo/standard headset jack
Power and Battery:	11 600 mAh 3.7 V lithium-polymer battery Charging via 12 V AC/DC power supply
Input Voltage:	12 V (9-35 V)
Power Consumption:	5 W
Operating Temp.:	-10 to 55°C (14 to 131°F)
Storage Temp.:	-20 to 70°C (-4 to 158°F)
Dimensions (W x H x D):	270.8 mm (10.0”) x 176.0 mm (6.9”) x 36.0 mm (1.4”)
Weight	NW: 1.05 kg (2.3lb.)

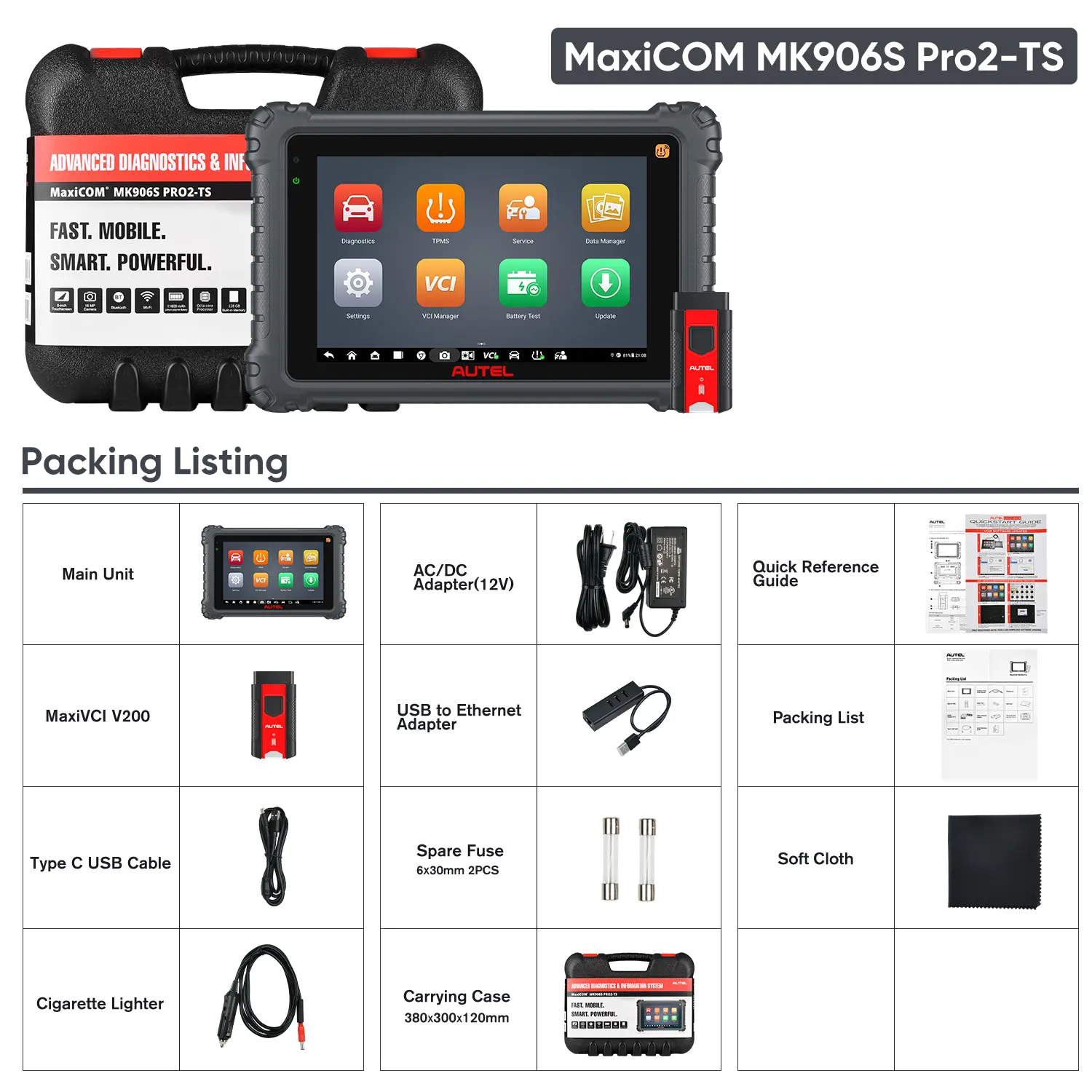

Packing List

• 1x MaxiCOM MK906S Pro2-TS main unit
• 1x MaxiVCI V200
• 1x AC/DC Adapter (12V)
• 1x Type C USB Cable
• 1x Cigarette Lighter Adapter
• 2x Spare Fuse(6*30mm)
• 1x USB to Ethernet Adapter
• 1x Soft Cloth
• 1x Packing List
• 1x Carrying Case
• 1x Quick Reference Guide

Product Guides & Downloads

• Autel MK906S PRO2-TS User Manual (PDF)
• Autel MK906S PRO2-TS Quick Guide
