Autel MaxiPro MP900BT / MP900Z-BT

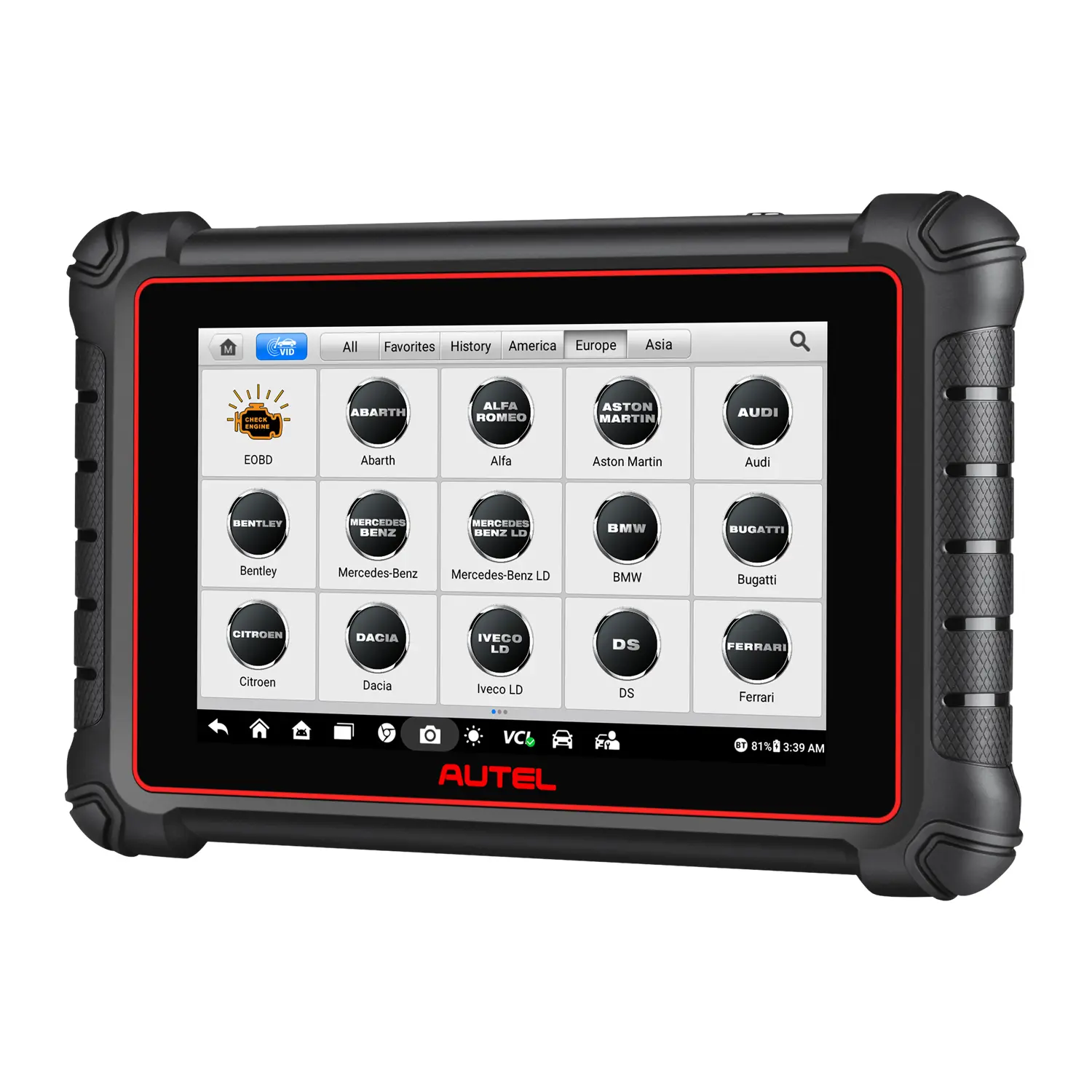

Autel MaxiPRO MP900-BT Automotive Diagnosis System

Equipped with a powerful quad-core processor and an 8.0-inch LCD capacitive touchscreen, the Autel MaxiPRO MP900-BT runs on the Android multitasking operating system. It can quickly read and clear DTCs for all available modules of most makes and models on the market, making it an ideal auto diagnostics and service tool. It also provides superior special functions, including Oil Reset, EPB (Electronic Parking Brake), SAS (Steering Angle Sensor), BMS (Battery Management System), and DPF (Diesel Particulate Filter) operations.

Autel MaxiPRO MP900-BT Features

• 1-Year Free Software Updates & Warranty
• 8.0-inch LCD capacitive touchscreen with 1280×800 resolution for clear display
• Comes with MaxiVCI V150 for wireless connection, enabling flexible handheld operation
• Reads and clears codes for all available vehicle systems, covering comprehensive diagnostic needs
• Displays live data in text, graph, and analog formats for easy review and analysis
• Offers an expansive menu of over 40 service and maintenance tasks for diverse vehicle needs
• Supports DoIP and CAN FD protocols, ensuring compatibility with the latest vehicle communication standards
• Features AutoVIN technology that automatically identifies a vehicle's make, model, and year in no time
• Supports Pre & Post Scan functions to verify repair effectiveness before and after maintenance
• Resets service mileage and service intervals to maintain accurate vehicle maintenance records
• Enables relearning of parking brake pads after replacement, ensuring proper brake system operation
• Performs forced regeneration (for DPF) and injector adjustment to optimize engine performance
• Supports battery registration and reset, matching new batteries to the vehicle's BMS
• Resets the Steering Angle Sensor (SAS) to calibrate the steering system after maintenance

Specifications

Operating   System	Android   11
Processor	Quad core Processor(1.8GHz)
Memory	4GB RAM & 64GB ROM
Display	8-inch LCD capacitive touchscreen with 1280x800 resolution
Rear Camera	8 MP
Connectivity	USB Type-C
	USB 2.0
	Wi-Fi
	Bluetooth
	Mini SD card (supports up to 64GB)
Audio Input/Output	Input: N/A
	Output: buzzer
Power and Battery	3.7 V/7700mAh lithium-polymer battery
	Charges via 5 VDC power supply
Battery Charging Input	5 V/3 A
Operating Temp	0 to 50°C (32 to 122°F)
Storage Temp	-10 to 60°C (14 to 140°F)
Protocols	ISO9141-2, ISO14230-2, ISO15765, K/L-Line, Flashing   Code, SAE-J1850 VPW, SAE-J1850PWM,   ISO11898(High-speed, Middle-speed, Low-speed    and Single-wire CAN, fault-tolerant CAN) , SAE J2610, GM UART, UART   Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6, DoIP, CANFD

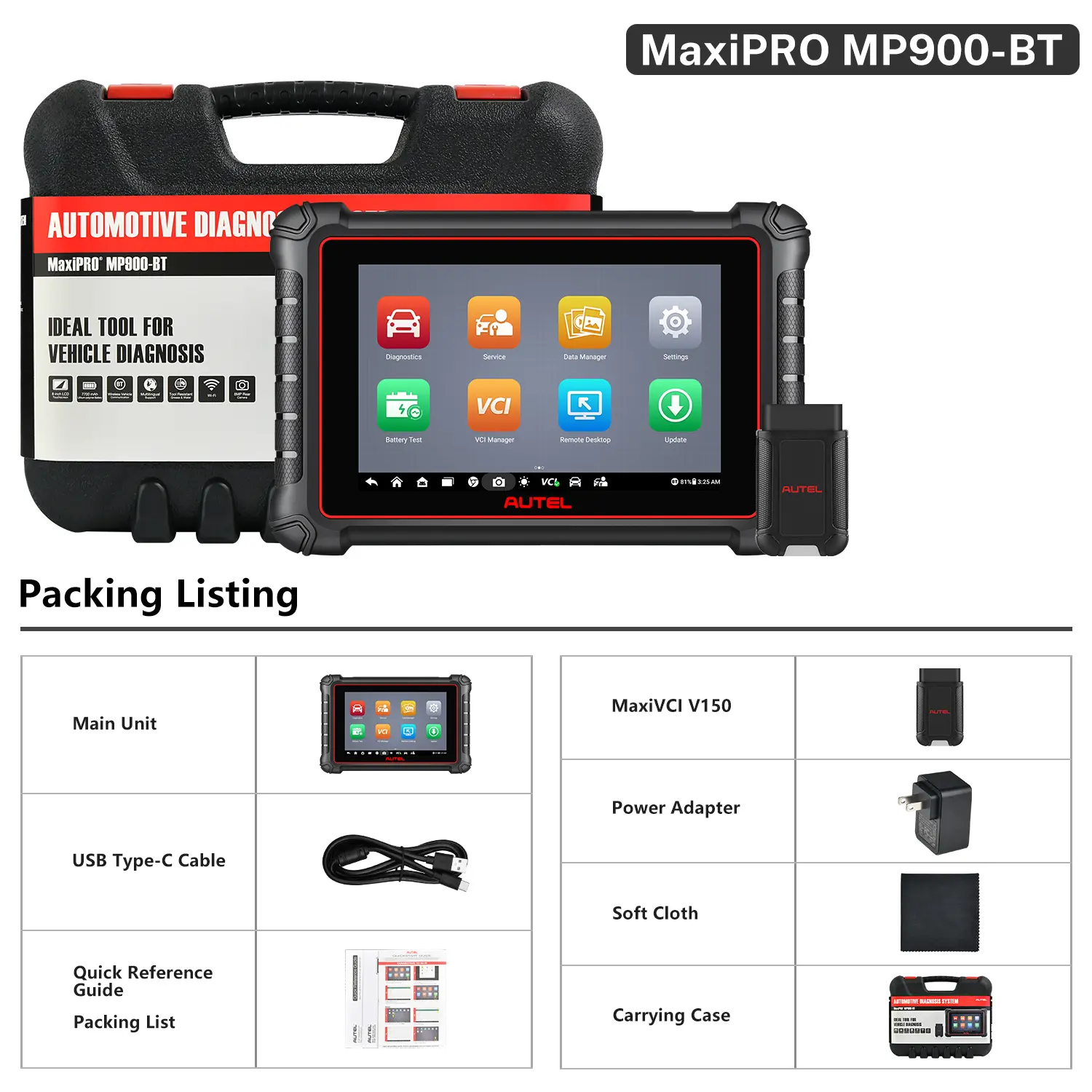

Packing List

• 1x MP900BT Main Unit
• 1x MaxiVCI V150
• 1x Power Adapter
• 1x USB Type-C Cable
• 1x Soft Cloth
• 1x Quick Reference Guide
• 1x Packing List(This document)
• 1x Carrying Case
