Autel MaxiSys MS919

Autel Maxisys MS919 OBDII Bi-Directional Diagnostic Scanner with MaxiFlash VCMI

MaxiSYS MS919 is a 9.7-inch touchscreen Android-based advanced diagnostic tablet powered by an Octa-core processor, 128GB memory and features the MaxiFlash VCMI, a 5-in-1 communication and testing tool providing wireless vehicle communications between the vehicle and tablet and supporting the latest DoIP, D-PDU and Mega CAN vehicle communication protocols. The MS919 features dynamic topology module mapping for supported vehicles, and Oscilloscope preset guides and tests and waveform library. The MS919 features a rechargeable Lithium battery providing 8 hours of continuous use, and front and rear cameras.

Autel Maxisys MS919 Features

• 1-Year free software update & warranty

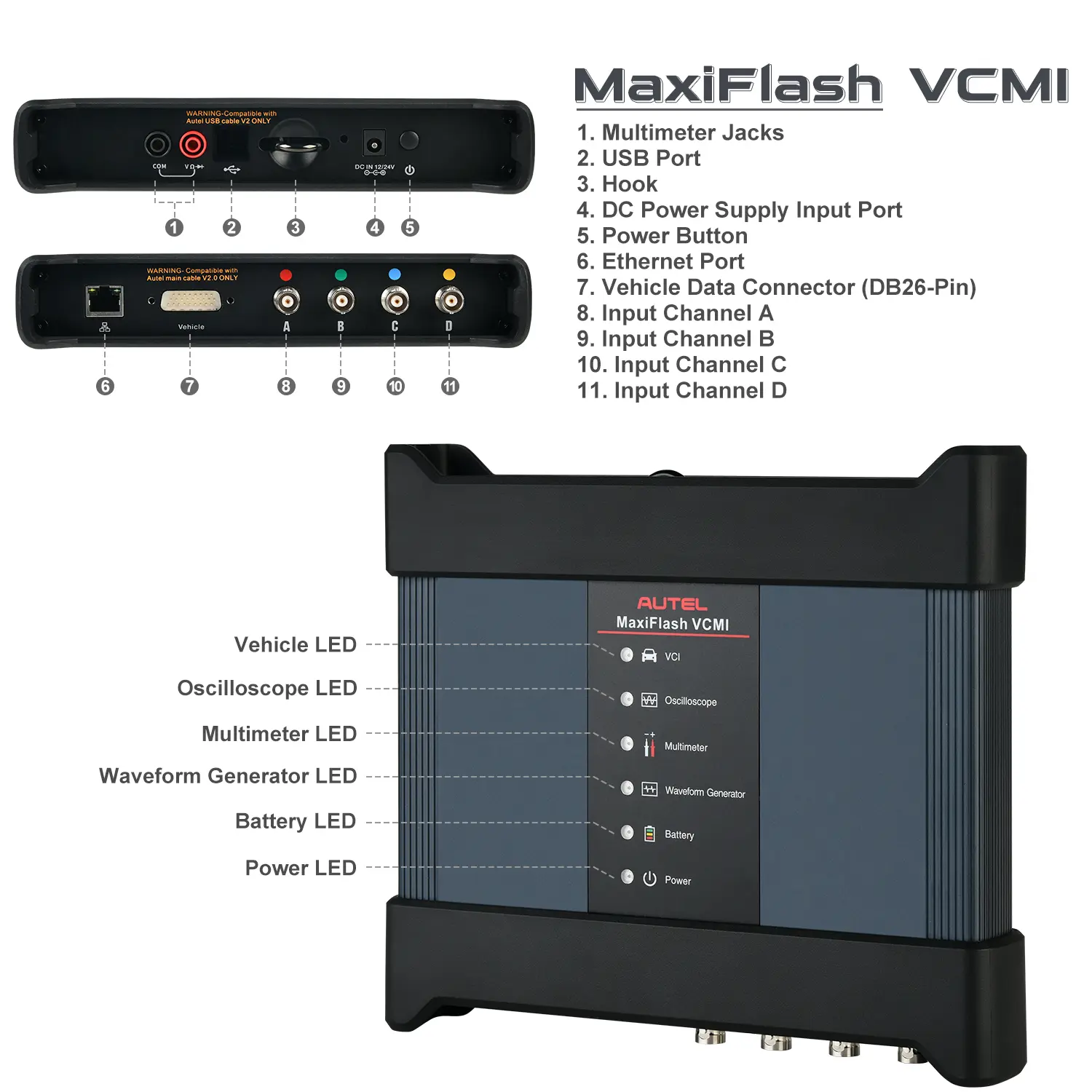

• The VCMI also functions as a 4-channel oscilloscope, waveform generator, multimeter and Can BUS tester
• The MS919 features dynamic topology module mapping for supported vehicles, and Oscilloscope preset guides and tests and waveform library
• Autel updates provide latest OE level coverage for more than 80 US domestic, Asian and European vehicles, including supercar
• Exceptional OE-Level functionality from comprehensive OBDII diagnostics & services to advanced ECU coding and programming
• Automatic system and software updates with real-time push message notifications via internet
• Interactive Data Logging sessions enable direct contact with Autel Support for first-hand troubleshooting of diagnostic bugs and errors
• One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organized
• Cloud-based Data Manager saves customer and vehicle records, scanner data and technician notes



Specifications

Operating System	Android 7.0
Processor	Samsung Exynos8895V octa-core Processor (2.3GHz Quad-core Mongoose + 1.7GHz Quad-core A53)
Memory	4GB RAM & 128GB On-board Memory
Display	9.7 inch TFT-LCD with 1536 x 2048 resolution & capacitive touchscreen
Connectivity	Wi-Fix2 (802.11 a/b/g/n/ac 2x2 MIMO) BT v.2.1 + EDR GPS USB 2.0 (TWO USB HOST Type A, ONE USB mini device) HDMI 2.0 SD Card (Support up to 256GB)
Camera	Rear: 16 Megapixel, Autofocus with Flashlight Front: 5.0 Megapixel
Sensors	Gravity Accelerometer, Ambient Light Sensor (ALS)
Audio Input/Output	Microphone Dual Speakers 3-Band 3.5 mm stereo/standard headset jack
Power and Battery	15000mAh 3.8V lithium-polymer battery Charging via 12V AC/DC power supply with the temperature between 0°C and 45°C
Input Voltage	12V/3A Adapter
Operating Temp.	0 to 50°C (32 to 122°F)
Storage Temp.	-20 to 60°C (-4 to 140°F)
Dimensions	304.4 mm (11.98") x 227.8 mm (8.97") x 42.5 mm (1.67")
Weight NW	1.66kg (3.66lb.)
Protocols	DoIP, PLC J2497, TP16 SAE-J1939, SAE J1708, SAE-J2411 Single Wire Can(GMLAN), SAE-J2819 (TP20), SAE-J2610 (Chysler SCI), SAE-J2809 (Honda Diag-H) SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), SAE J2819 (VAG KW81), SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2) ISO-15765, ISO-14229 UDS, ISO-11897-2, ISO-11897-3, ISO-9141, ISO-14230 UART Echo Byte, Ford UBP, Nissan DDL UART with Clock, BMW DS2, BMW DS1, KW82

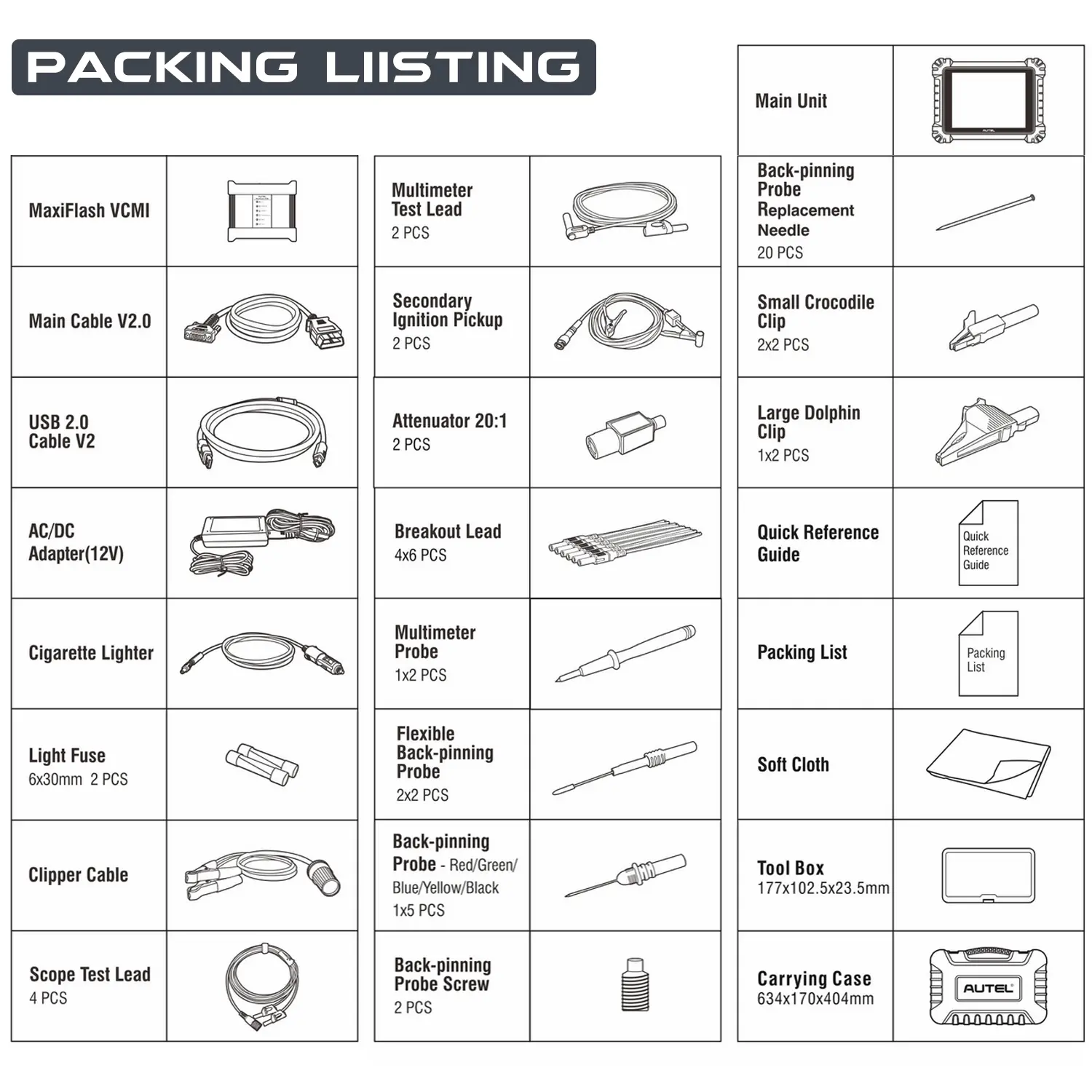

Packing List

• 1x MS919 Main Unit
• 1x MaxiFlash VCI
• 1x Main Cable V2.0
• 1x USB 2.0 Cable V2
• 1x AC/DC Adapter(12V)
• 1x Cigarette Lighter
• 2x Light Fuse 6x30mm
• 1x Clipper Cable
• 4x Scope Test Lead
• 1x Multimeter Test Lead
• 2x Secondary Ignition Pickup
• 2x Attenuator 20:1
• 4x6 Breakout Lead
• 1x2 Multimeter Probe
• 2x2 Flexible Black-pinning Probe
• 1x5 Back-pinningProbe(Red/GreenBlue/Yellow/Black)
• 2x Back-pinning Probe Screw
• 20x Back-pinning ProbeNeedle Replacement
• 2x2 Small Crocodile Clip
• 2x2 Large Dolphin Clip
• 1x Quick Reference Guide
• 1x Packing List
• 1x Soft Cloth
• 1x Tool Box 177 x 102.5 x 23.55 mm
• 1x Carrying Case 634 x 170 x 404 mm

Product Guides & Downloads

• Autel MS919 User Manual (PDF)
• MS919 One Year Software Update
