Autel MaxiCheck MX808S-TS
Autel MaxiCheck MX808S-TS Diagnostic & TPMS Scanner
Autel MaxiCheck MX808S-TS Scanner is upgraded from MX808 / MX808S, same as Autel MK808S-TS, combining a professional TPMS Tool and OBD2 Diagnostic Scan Tool. With full TPMS and vehicle diagnostics, it is ideal for workshops, mechanics, and automotive enthusiasts seeking reliable performance.
Equipped with advanced hardware, Autel MX808S-TS features Android 11, 4GB RAM & 64GB ROM, Rockchip RK3566 Processor, dual-band 2.4 & 5GHz Wi-Fi, 7-inch 1024x600 touchscreen, and 5000mAh battery for extended use.
Autel MaxiCheck MX808S-TS Key Features
Hardware
- Android 11 & Rockchip RK3566 processor
- 4GB RAM & 64GB ROM, 5000mAh Battery
- Dual-band 2.4 & 5 GHz Wi-Fi, 1024x600 LCD touchscreen
Software
- Advanced Diagnostic Functions
- One Year Free Software Update and one year free warranty
- Bi-Directional Control / Active Test
- 30+ Popular Vehicle Maintenance Services
- 10+ High-end Vehicle Functions
- OE-Level Full Module Diagnostics
- Battery Test Compatible with BT506
- Endoscope Inspection Compatible with MV105S/MV108S
- No-IP Limitation, 150+ Brands Covered (1996-2026)
- Renault Security Gateway & FCA AutoAuth for 2017+ Vehicles
- Comprehensive TPMS Features
- Activate 99% of 315MHZ / 433MHZ TPMS Sensors
- TPMS Diagnostic System with Error Code Reset
- Autel MX-Sensors Programming & Retrofitting
Powerful TPMS Diagnostic System with MX808S-TS
The Autel MX808S-TS performs OE-Level TPMS Diagnostics, reading and clearing TPMS trouble codes, viewing live sensor data, and identifying vehicle model, year, and frequency to prevent sensor matching errors.
1. Program All Autel MX-Sensors
Program new or replacement MX-Sensors with Copy by OBD or Auto Create 1-16 Sensors methods. Note: Only Autel MX-Sensors are supported.
- Copy by OBD: Program sensor IDs from ECU to new MX-Sensor.
- Auto Create 1-16 Sensors: Automatically generate sensor IDs for up to 16 MX-Sensors simultaneously.
2. Activate 99% of TPMS Sensors
Activate almost all 315MHZ / 433MHZ TPMS sensors, including OEM and Autel MX-Sensors. View sensor ID, tire pressure, temperature, battery, and position.
3. Relearn 99% of TPMS Sensors
Supports Stationary, Automatic, and OBD Relearn methods for Asian & European vehicles.
4. Advanced TPMS Retrofit (Exclusive)
Retrofit vehicles without factory TPMS modules or sensors for full monitoring:
- Back up original vehicle data
- Code Autel TPMS module
- Install module on vehicle
- Program MX-Sensors
- Activate sensors
- Relearn sensors with on-board module
Full Bi-Directional Control / Active Test
Control components to diagnose issues quickly: mirrors, windows, A/C clutch, and more.
ALL-System Coverage & OE-Level Diagnostic
Scan all modules, read/erase codes, view live data & freeze frames efficiently.
30+ Popular Maintenance Functions
- Oil Reset, EPB, BMS, DPF Regeneration, ABS Bleeding
- Seats, Odometer, Injector, Tire Size, TEC Learn, Suspension, Throttle, Windows/Roof, Language Change, Headlamp, and more
Wide Vehicle Coverage
Covers 80+ Makes, 150+ Models, 10,000+ Vehicles, continuously updated.
Fast Performance & Extended Battery Life
- Rockchip RK3566 Cortex-A55 CPU (1.8GHz) for fast boot
- Android 11 OS for 5X faster operation
- Dual Wi-Fi 2.4 & 5GHz for faster data transfer
- 5000mAh battery for 6.5 hours continuous use
- 64GB Storage for vehicle documents & customer data
Extended Features
- Anti-Theft IMMO (Key Fob Coding for Asian vehicles)
- Smart Auto VIN, Smart Auto Scan, Data Logging
- FCA AutoAuth for 2017+ vehicles
- Autel Cloud Report Management
- Battery Test with BT506, HD Digital Inspection with MV108/MV105
- 12-Month Free Update, 1-Year Warranty, 24/7 Support, 100% Original Product, Lifetime Tech Support
Specifications
| Recommended Use | Indoor |
| Operating System | Android 11 |
| Processor | Rockchip RK3566 |
| Memory | 4GB RAM & 64GB ROM |
| Display | 7-inch LCD touchscreen, 1024x600 |
| Connectivity | Mini USB 2.0, USB 2.0, Wi-Fi, HDMI, Micro SD up to 32GB |
| Battery | 3.7V/5000 mAh, Charges via 5V DC |
| Operating Temp | -10°C to 60°C |
| Storage Temp | -20°C to 70°C |
| Dimensions | 270.8mm x 176mm x 36mm |
| Weight | 885g |
| Protocols | ISO9141-2, ISO14230-2, ISO15765, K/L-Line, SAE-J1850 VPW/PWM, ISO11898, TP2.0, TP1.6, Honda Diag-H, GM UART, and more |

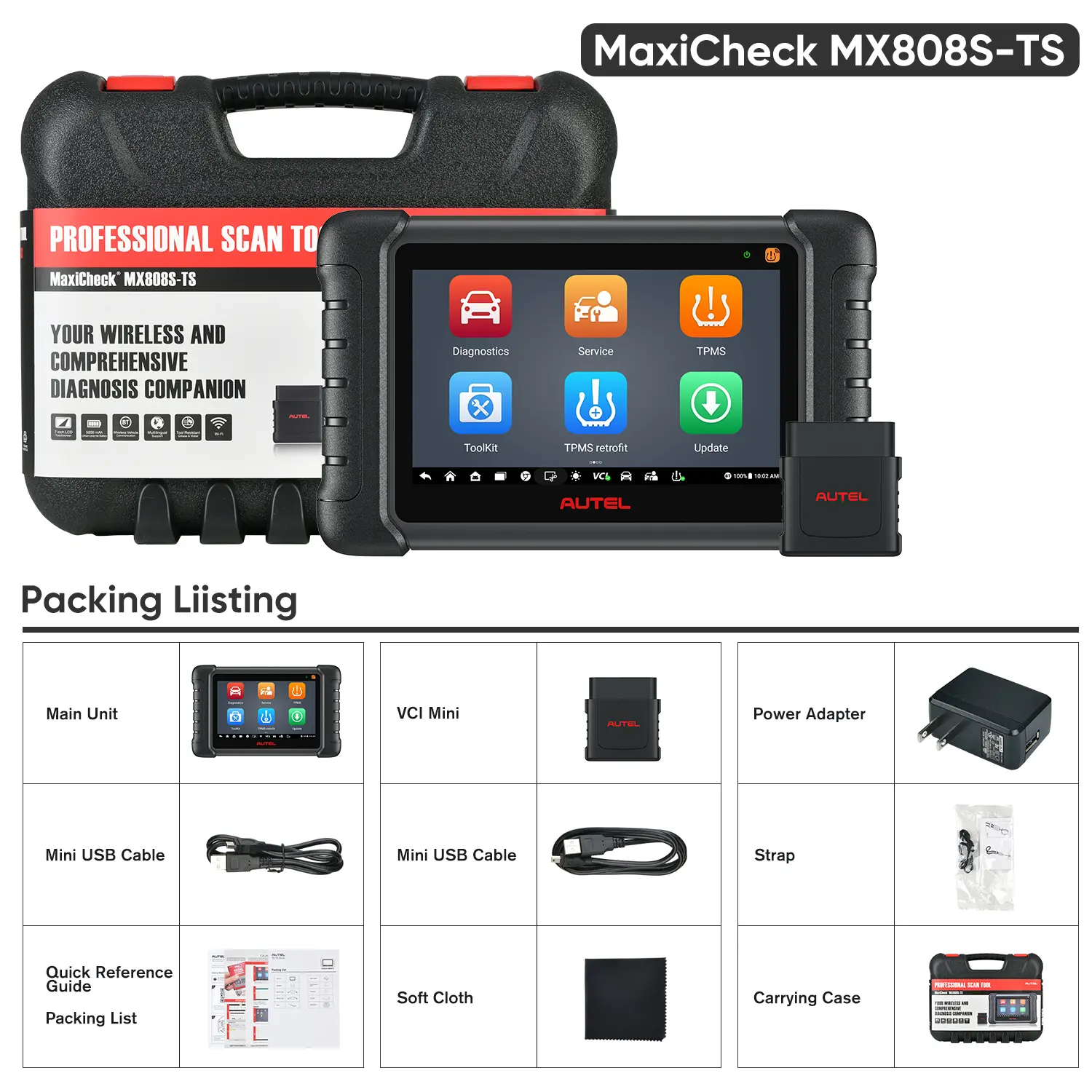

Packing List
- 1x MX808S-TS Main Unit
- 1x VCI Mini
- 1x Power Adapter
- 2x Mini USB Cable
- 1x Strap
- 1x Quick Reference Guide
- 1x Soft Cloth
- 1x Carrying Case
Product Guides
MX808S-TS User Manual (PDF)
MX808S-TS Quick Guide (PDF)
MX808S-TS One Year Software Update
